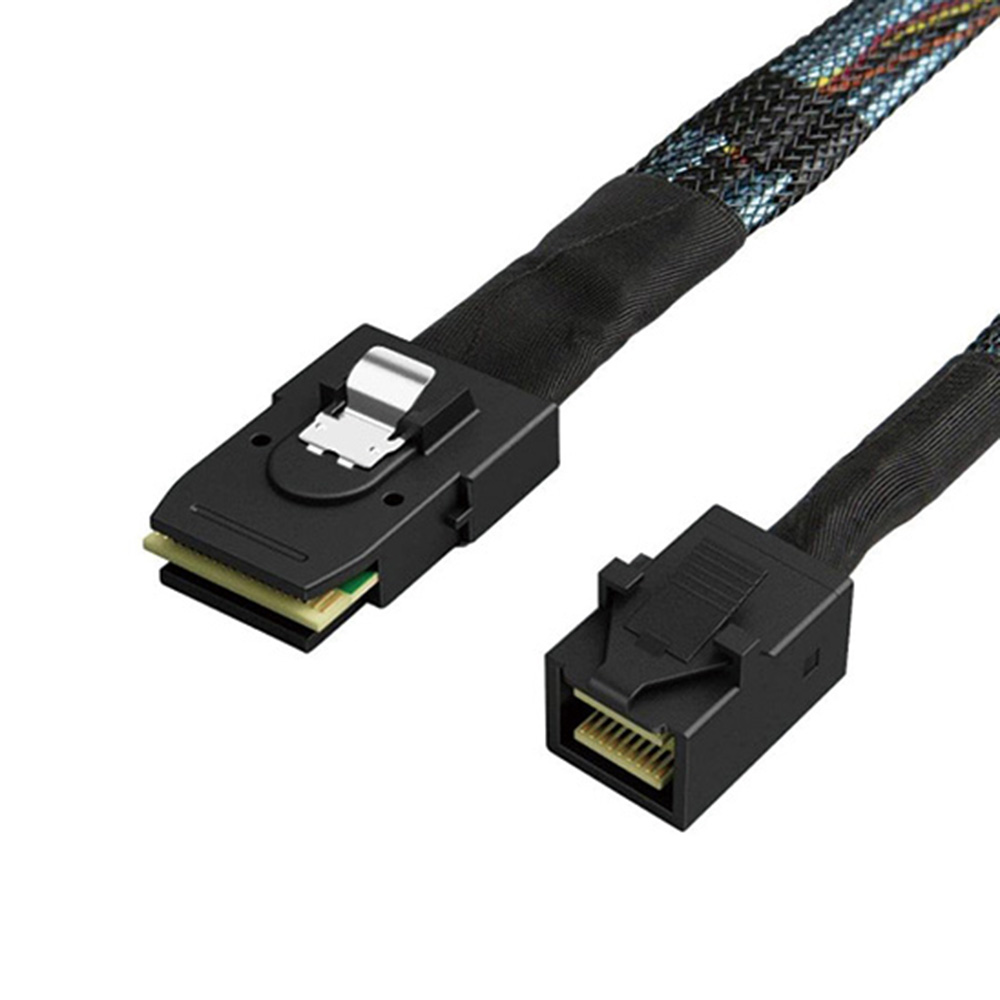

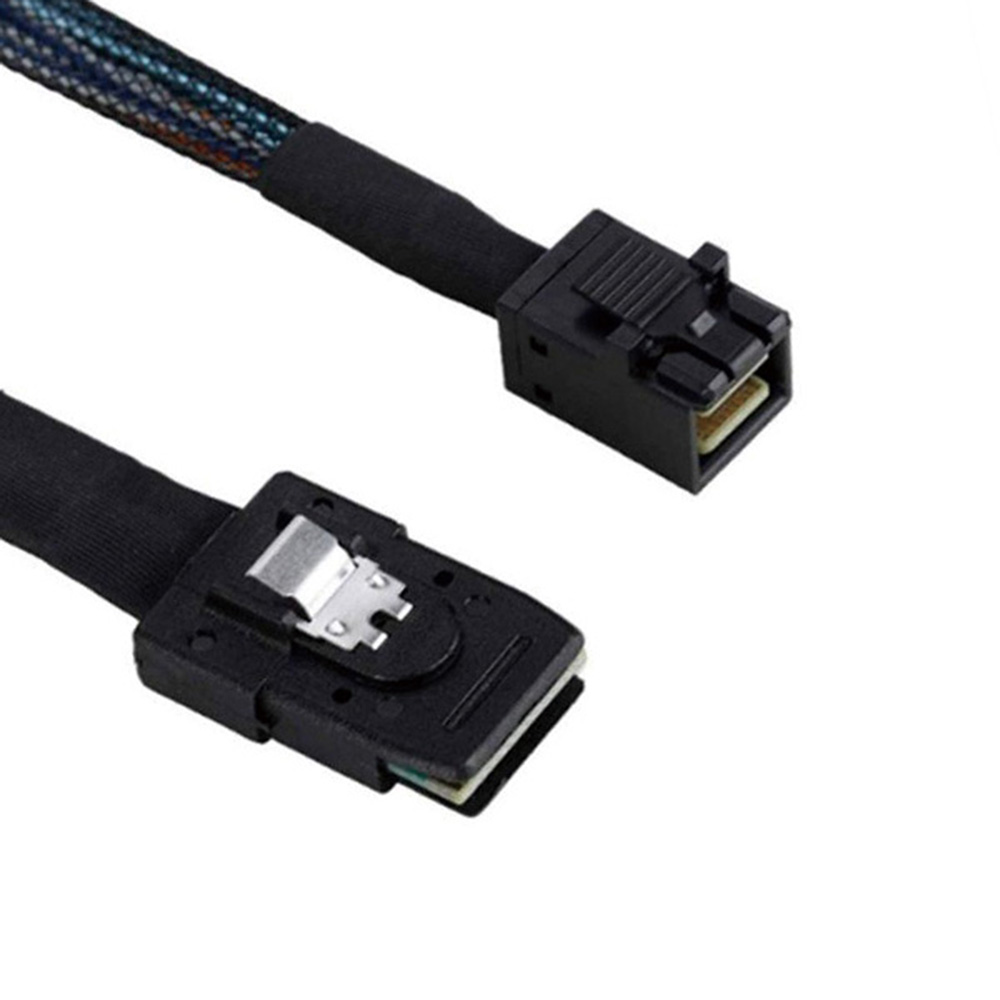

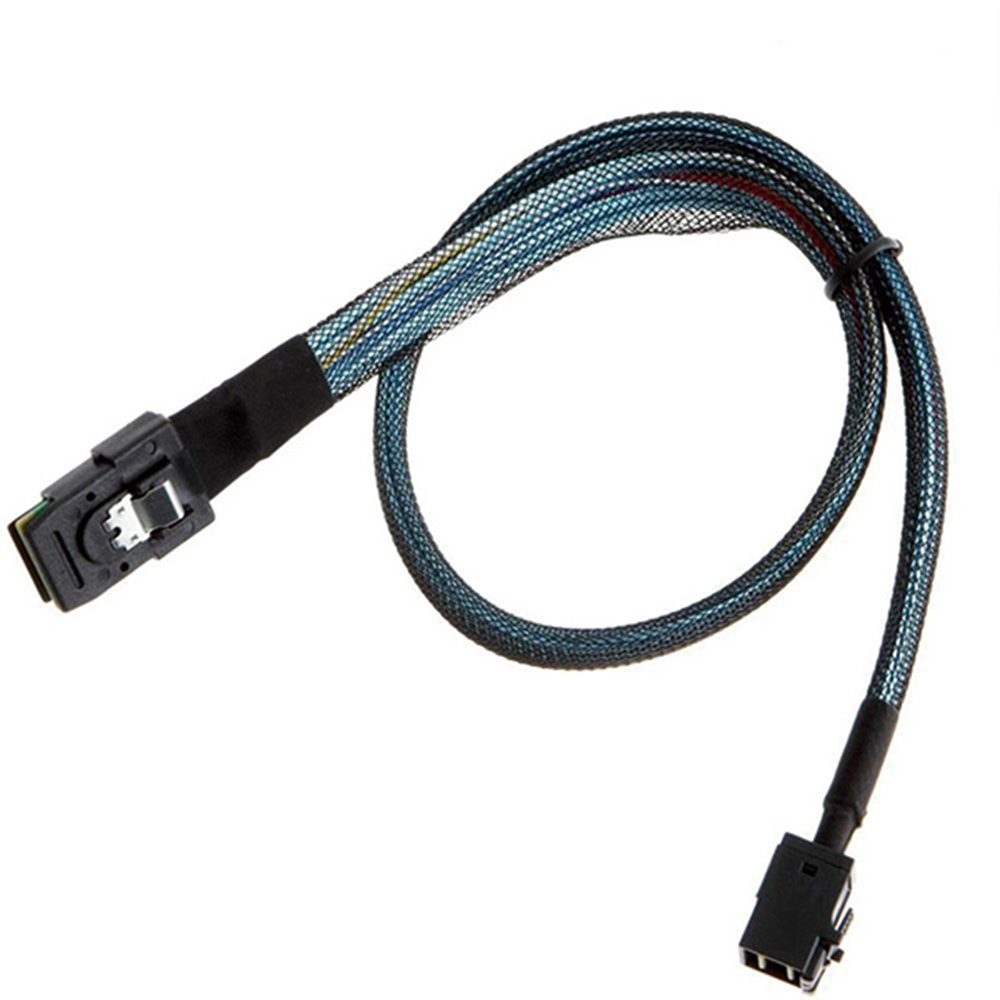

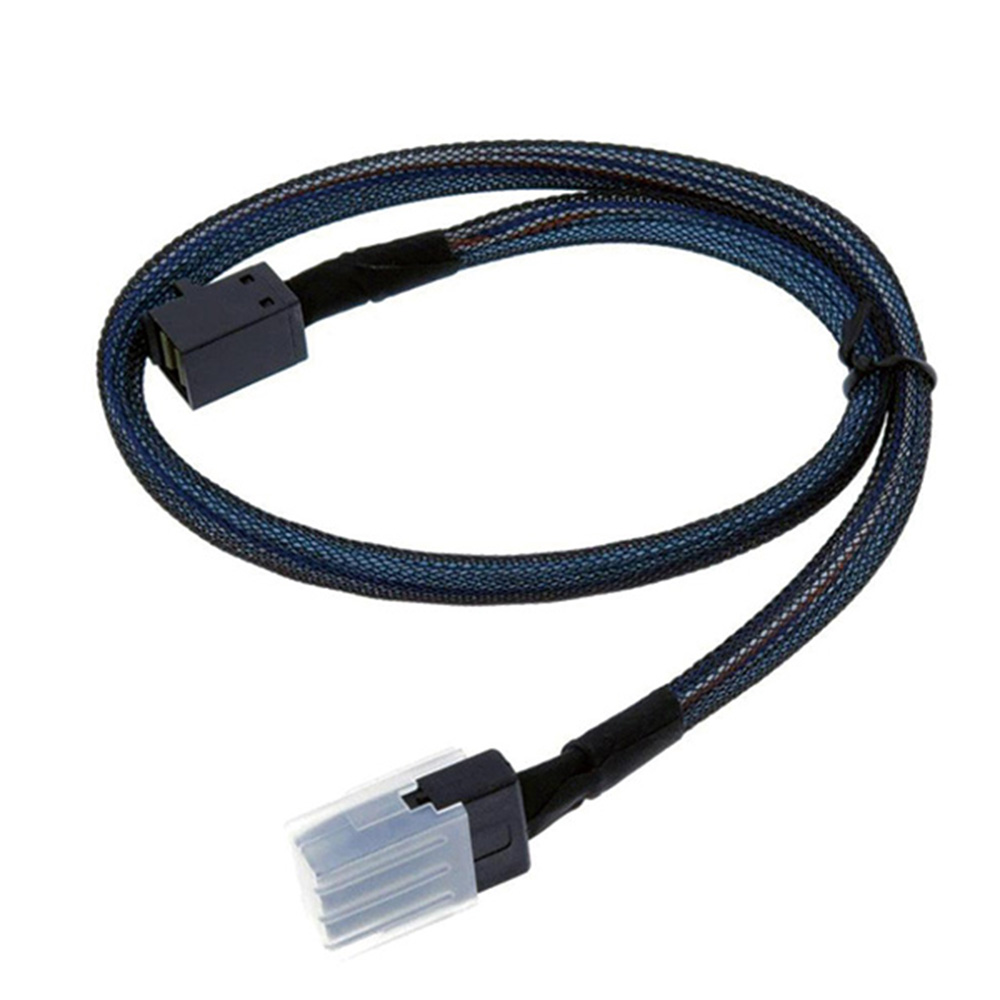

HD Mini SAS SFF-8643 to SFF-8087 Cable

HD Mini SAS SFF-8643 to SFF-8087 Cable

The HD Mini SAS SFF-8643 to SFF-8087 cable is a professional high-speed cross-interface storage interconnect solution designed for data and communication infrastructure. Fully compliant with SAS 3.0 Revision 5a industry specification, it delivers stable 12Gbps ultra-high bandwidth data transmission. With precisely calibrated impedance structure, excellent mechanical stability and superior electrical performance, it effectively reduces signal loss and crosstalk under high frequency operation. Serving as a reliable bridge between new-generation HD Mini SAS and traditional Mini SAS interfaces, it perfectly meets high-load data transmission demands of enterprise storage and server systems.

Features and Benefits

Built in accordance with official industrial standards, this cable features ultra-fast transmission speed and outstanding compatibility for enterprise-grade storage deployment:

1. High-Speed 12Gbps Bandwidth: Supports SAS 3.0 full-speed transmission up to 12Gbps, greatly improving data transmission efficiency and reducing system latency.

2. Strict SAS 3.0 Standard Compliance: Fully conforms to SAS 3.0 Revision 5a specification, ensuring universal compatibility and stable interoperability with mainstream SAS storage devices.

Applications

Widely deployed in enterprise data storage and high-performance computing fields, applicable for core data transmission scenarios:

1. RAID Storage Arrays: Provides high-speed, low-latency data interconnection for redundant disk arrays, ensuring secure and efficient data read-write and backup operation.

2.  High-Performance Workstations: Ideal for professional workstations requiring large-volume data processing and high-speed storage response.

3. Rack Servers & Enterprise Servers: Perfect for internal high-density wiring of rack-mounted servers and standard enterprise servers to optimize system transmission efficiency.

4. Storage Shelf Systems: Applied to internal connection of enterprise storage shelves, realizing stable data interaction between storage controllers and disk modules.

Electrical Parameters

Adopting high-quality conductive materials and precise production processes, the cable maintains excellent electrical stability under long-term high-load operation:

1. Contact Current Rating: Maximum 0.5A per contact during mating state

2. Rated Voltage: 30VAC per contact (mated or unmated)

3. Contact Resistance: Maximum 30mΩ (initial state); maximum 15mΩ after stress test

4. Dielectric Withstanding Voltage: 500VAC, no breakdown for 1 minute

5. Insulation Resistance: Minimum 1000MΩ between adjacent pins

Signal Integrity

Precision impedance calibration and optimized high-frequency layout effectively suppress signal attenuation and crosstalk, maintaining complete signal integrity for SAS 3.0 high-speed transmission:

1. Mated Connector Impedance: 100Ω ±15%

2. Absolute Cable Impedance: 100Ω ±10%

3. Cable Pair Matching: ±5Ω

4. Common Mode Impedance: 25Ω ~ 40Ω

5. Insertion Loss: ≤ -6dB @ 4.5GHz; ≤ -9dB @ 11GHz

6. Crosstalk Performance: ≤ -35dB up to 6GHz

Product Environmental Compliance

• RoHS2.0: Compliant

• China RoHS: Yes

• REACH SVHC: Yes
