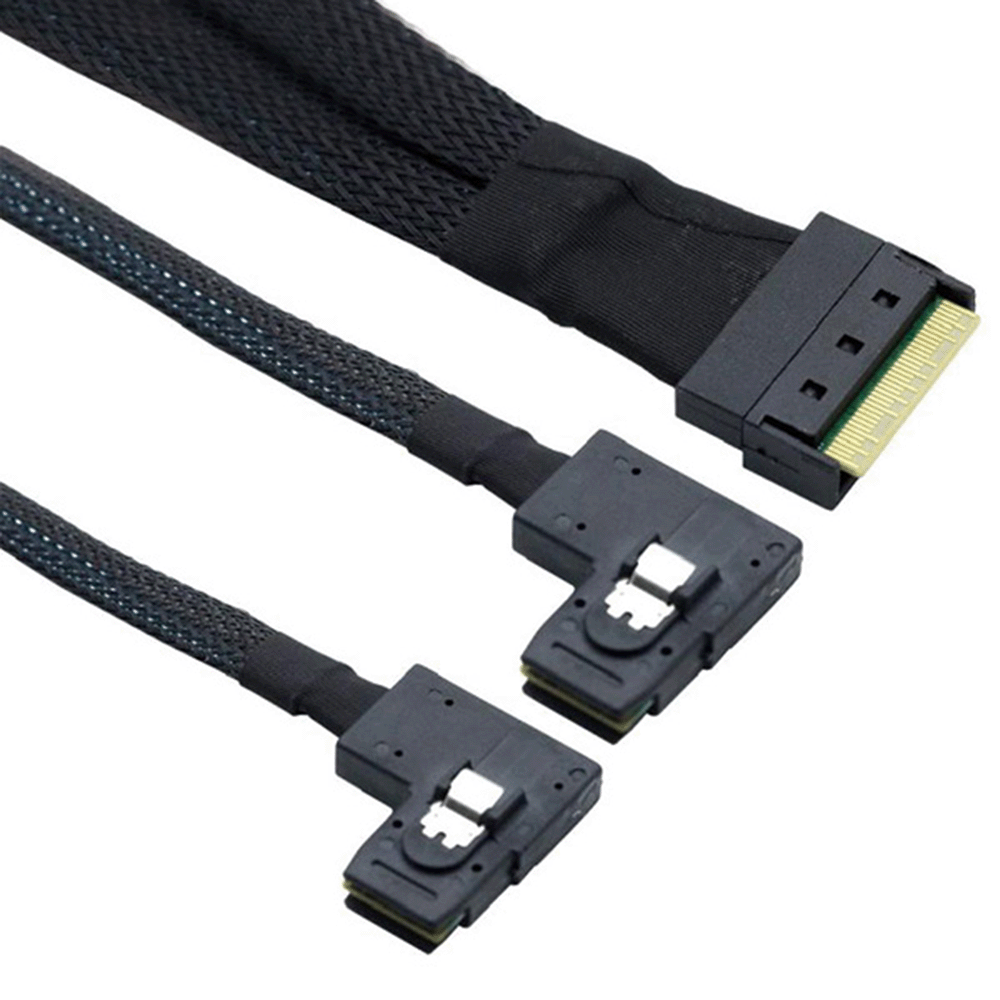

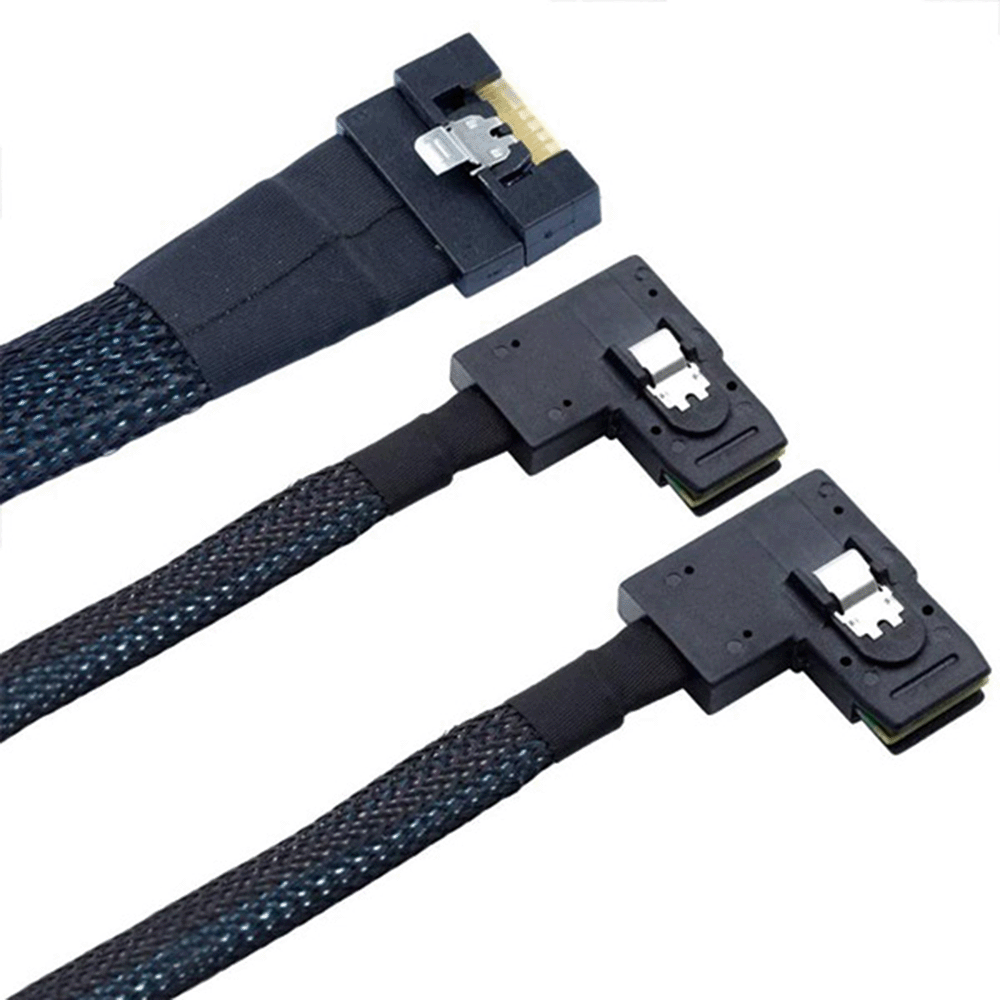

SlimSAS SFF-8654 To 2X SFF-8087 Left Angle Cable

SlimSAS SFF-8654 8i  To 2X MiniSAS SFF-8087 36P Left Angle Cable

This SlimSAS SFF-8654 8i high-speed cable is a multi-functional, high-density interconnect solution designed for next-generation enterprise computing and storage infrastructure. Fully compliant with SAS 4.0 and SlimSAS SFF-8654 industrial standards, it supports 8-channel synchronous signal transmission with multi-protocol compatibility. Delivering ultra-high transmission rates covering UPI, SAS4.0, OpenCAPI and PCIe 4.0, it achieves outstanding signal stability and low-loss performance. Featuring a miniaturized cable and connector design, it effectively saves chassis space, while qualified mechanical and electrical performance ensures long-term stable operation for servers, storage devices and professional workstations.

Features and Benefits

Integrating miniaturized design, multi-protocol compatibility and ultra-high-speed transmission, this product delivers comprehensive performance advantages for modern high-density equipment:

1. Space-Saving Miniaturized Structure: Adopts compact-size connectors and slim cable design, greatly reducing internal equipment occupancy and optimizing high-density chassis wiring layout.

2.  8-Channel Standard Transmission: Supports 8-channel independent synchronous signal transmission in line with industrial specifications, maximizing overall transmission bandwidth and efficiency.

3. Multi-Protocol Ultra-High Bandwidth: Equipped with powerful multi-rate transmission capability, supporting UPI 11.2GT/s, SAS 4.0 24Gbps, OpenCAPI 25Gbps and PCIe 4.0 16Gbps per channel.

4. Standard Industrial Compliance: Fully conforms to SAS 4.0 and SlimSAS SFF-8654 official specifications, ensuring universal compatibility and standardized interoperability with mainstream high-speed hardware.

Applications

Engineered for high-performance and high-density computing scenarios, this cable is widely deployed in core enterprise hardware applications:

1. Enterprise Servers: Suitable for high-density rack servers and mainstream server hosts, supporting multi-channel high-speed signal transmission and efficient system operation.

2. Data Storage Systems: Ideal for next-generation high-speed storage arrays and enterprise storage equipment, meeting ultra-high bandwidth data read-write and transmission demands.

3. Professional Workstations: Perfect for high-performance workstations used for large-data computing, industrial processing and high-load business scenarios.

Electrical Performance

With standardized structural design and rigorous testing, the cable maintains stable mechanical performance for long-term repeated plugging and daily equipment operation:

• Maximum Mating Force: 55.5N

• Maximum Releasing Force: 49N

• Durability Lifespan: Minimum 250 mating/unmating cycles, ensuring reliable long-term service durability

Signal Integrity

Optimized high-frequency circuit design and precise impedance calibration fully comply with SAS 4.0 specification, ensuring low-loss and high-stability signal transmission:

• Mated Connector Impedance: 100Ω ±10% for accurate high-frequency signal matching

• Common Mode Impedance: Fully compliant with SAS 4.0 standard requirements

• Insertion Loss: Meets SAS 4.0 specification to minimize high-frequency signal attenuation

• Crosstalk Performance: Maximum crosstalk strictly conforms to SAS 4.0 standards, suppressing high-frequency interference

Product Environmental Compliance

• RoHS2.0: Compliant

• China RoHS: Yes

• REACH SVHC: Yes
