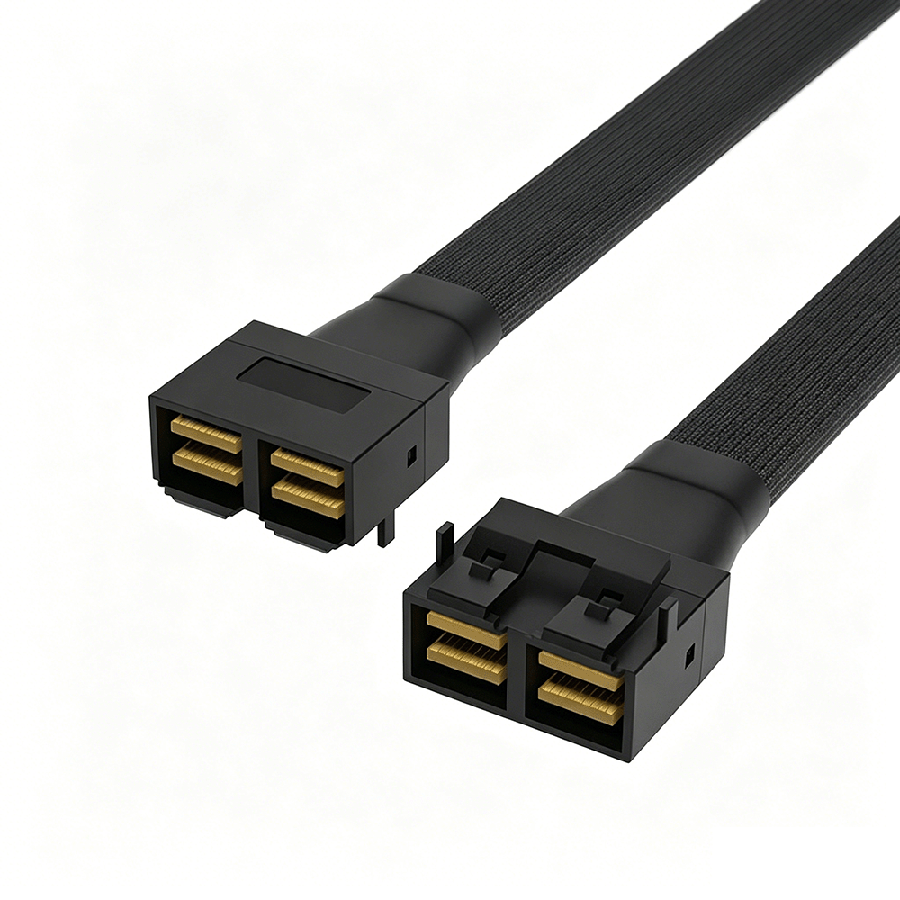

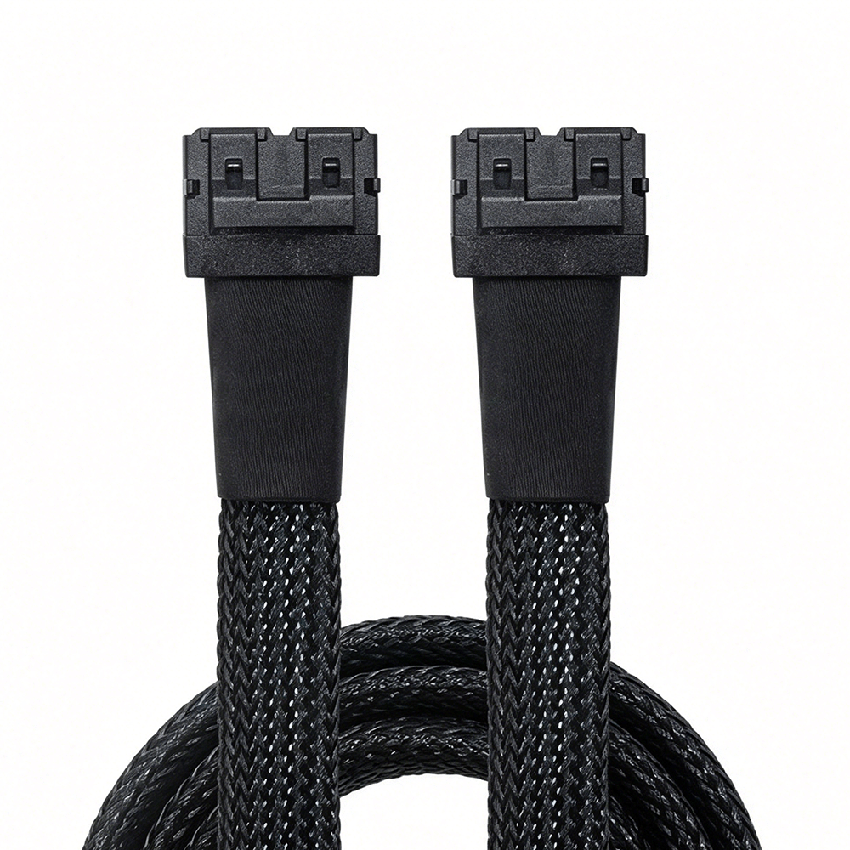

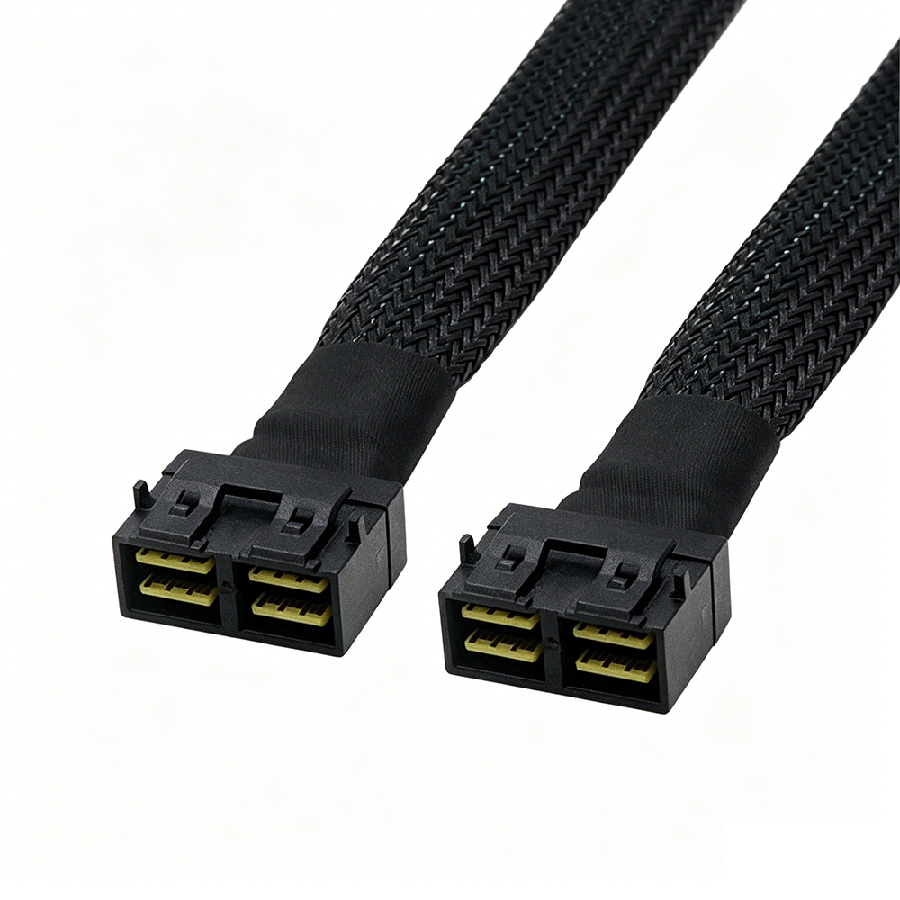

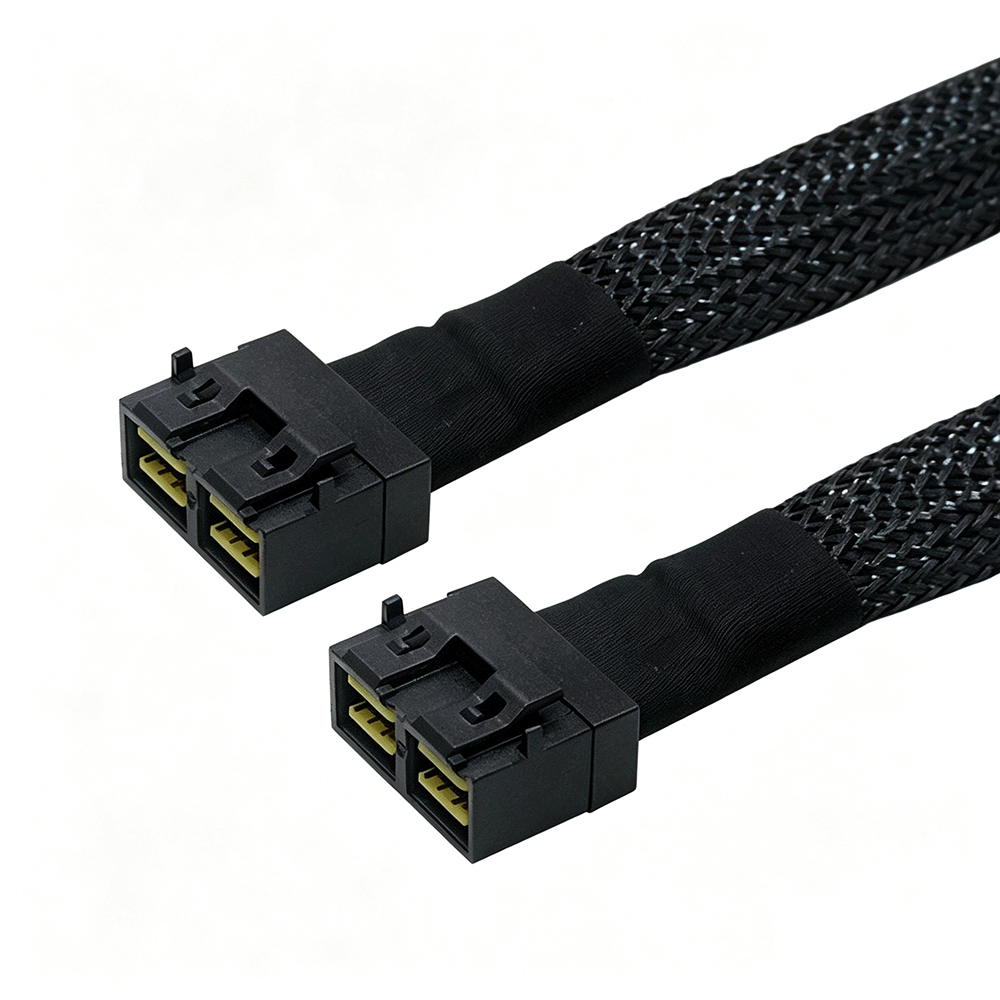

HD Mini SAS SFF-8643 8i to SFF-8643 8i Cable

HD Mini SAS SFF-8643 8i to SFF-8643 8i Cable

This SAS3.0 compliant cable reaches 12Gbps transmission for servers, RAID, workstations and storage racks. Strictly tested per EIA364-13 with controlled mating force and outstanding electrical indicators. Precisely tuned impedance, limited insertion loss and crosstalk guarantee excellent signal integrity across high frequencies. Meeting global RoHS2.0, China RoHS and REACH SVHC standards, it is a dependable interconnect option for enterprise data storage and communication systems.

Inquire Download

Product Description
Specification Parameter
Product Video
Cable Manufacturing Capabilities

HD Mini SAS SFF-8643 8i to SFF-8643 8i Cable

Compatibility for connecting SAS/SATA HBAs, RAID controllers, and backplanes. Rigorously tested for compatibility with major brands like Dell PowerEdge, HP ProLiant, Lenovo ThinkSystem, and LSI/Broadcom controllers, making it an ideal choice for server upgrades.

Features and Benefits

Compliance with SFF-8613/ 8643/8673 standard
Precisely engineered for 85-ohm&100-ohm controlled impedance to preserve superior signal integrity
Straight, right angle, side exit and customization cable plug are optional
Flexible wire options ranging from 30AWG to 34AWG
Supports signaling rates up 12Gbps

Applications/Market

Datacenter Servers
Data Storage
Workstation
Desktops

Mechanical Performance

Mating/unmating test follows EIA 364-13 standard with 25mm/min plugging speed. Max mating force:100N; minimum unmating force:50N for reliable repeated assembly.

Electrical Parameters

Each contact supports 0.5A rated current and 30VAC working voltage. Initial contact resistance ≤30mΩ, ≤15mΩ after compression test. It withstands 500VAC for 1min without breakdown, alongside ≥1000MΩ insulation resistance.

Compliance

Fully RoHS 2.0 & China RoHS and REACH SVHC compliant; low-halogen property pending inspection.

Specification Parameter

Model	G808
Connector A	SFF-8643 Straight
Connector B	SFF-8643 Straight
Signal Wire Size	30AWG-34AWG
Flammability	PCB UL94V-0, thermoplastic resin UL94V-0
Color	black
Impendance	100 ohms / 85 ohms
Data speed	12Gbps
Length	30CM/70CM/100CM
Environmental Compliance	RoHS,ROHS2.0,REACH
