HD Mini SAS SFF-8643 to SFF-8643 Right Angle Cable

HD Mini SAS SFF-8643 to SFF-8643 Right Angle Cable

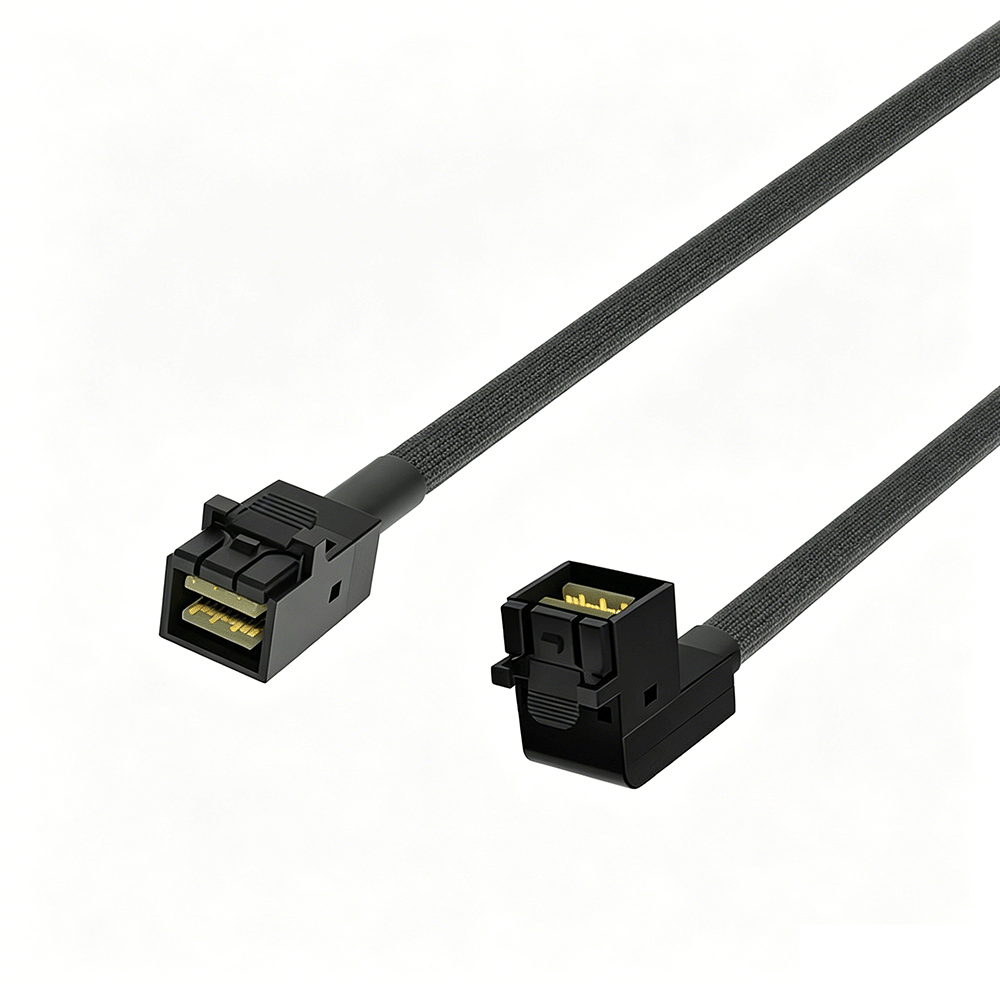

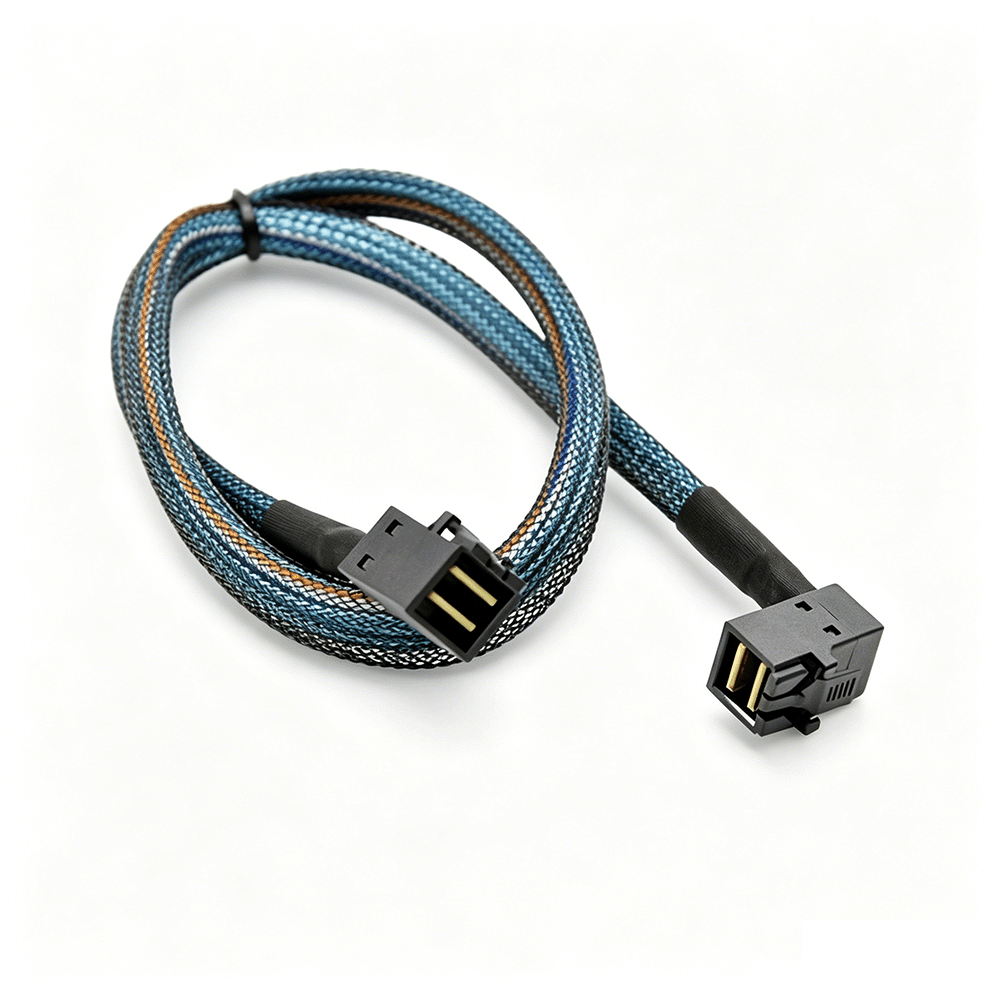

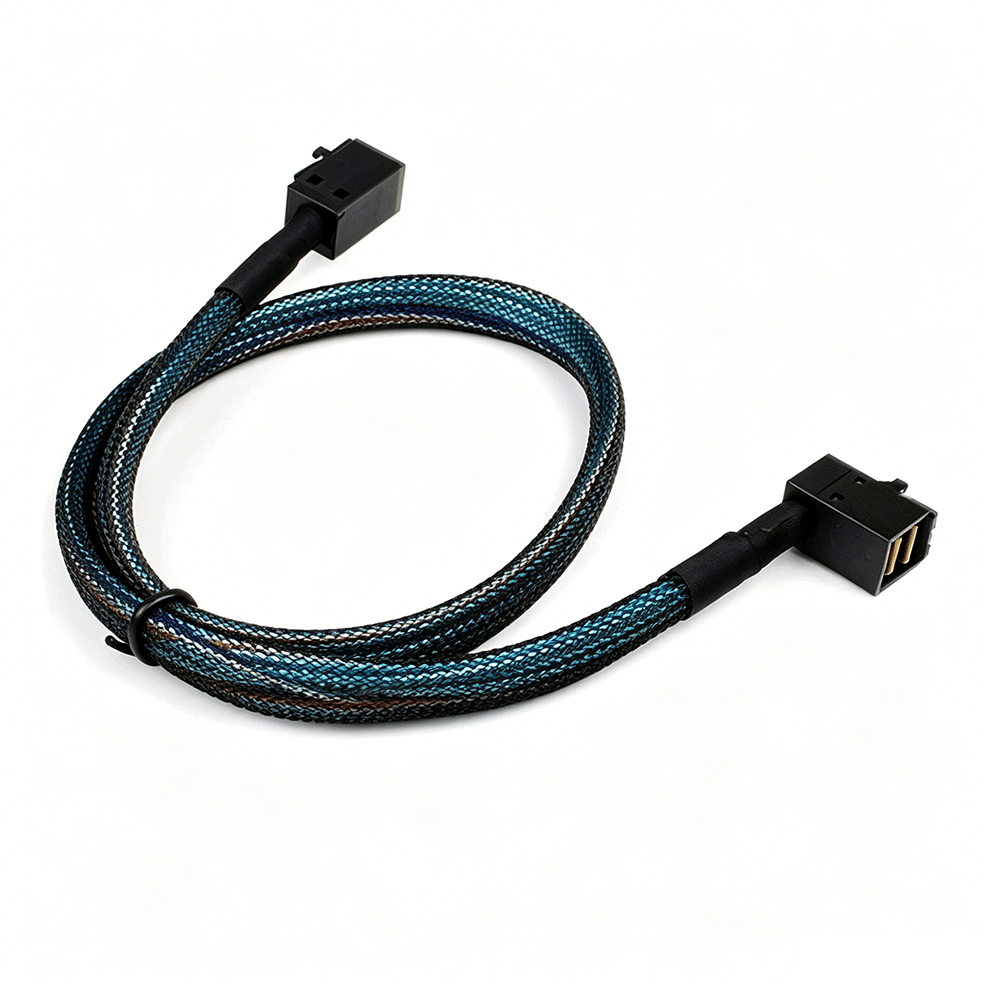

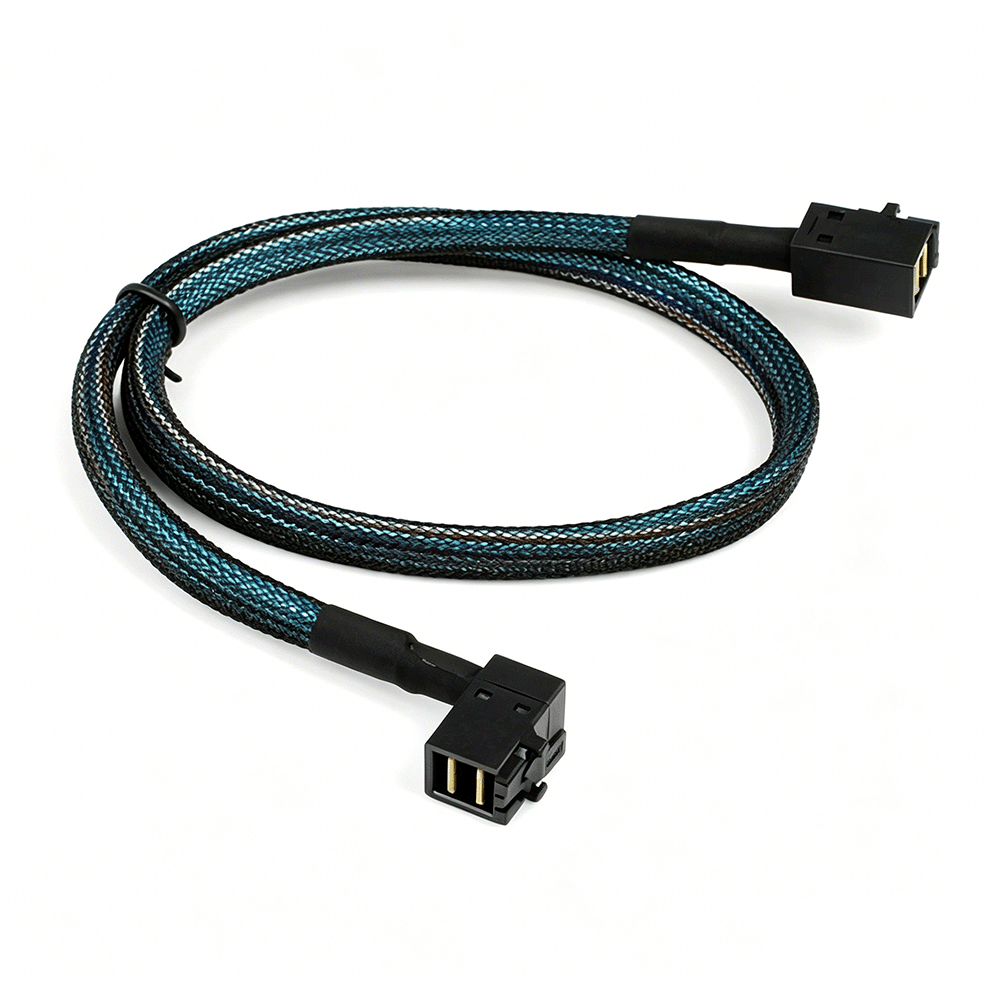

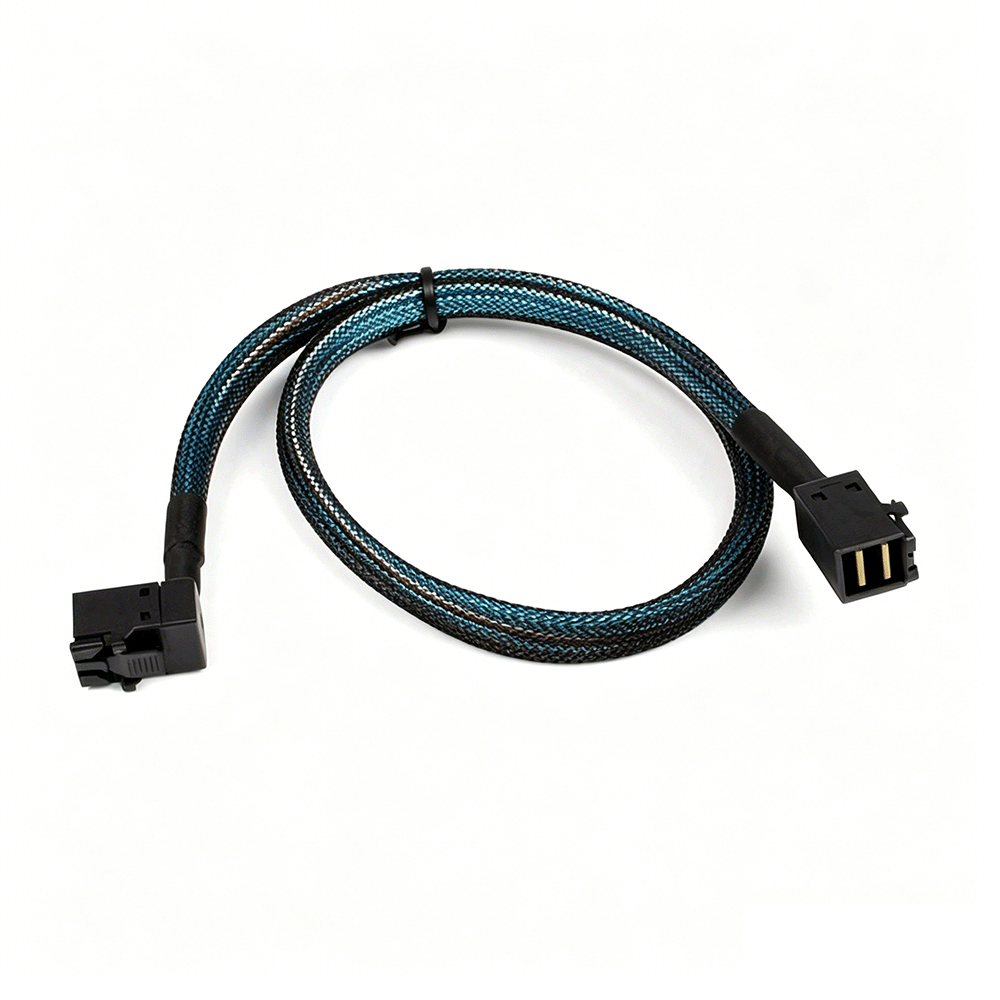

Right-Angle MiniSAS HD cable connects SFF-8643 to SFF-8643 for enterprise storage deployment. Constructed with high-purity HF copper in 30AWG and 30μ gold-plated connectors, it fully complies with SAS 3.0 standards and delivers steady 12Gbps per lane transmission with low signal loss.The right-angle design simplifies tight-space routing inside rack devices and improves internal airflow. Ideal for RAID arrays, workstations, rackmount servers and storage enclosures, this cable guarantees reliable high-speed data interconnection for data center and industrial storage setups.

Inquire Download

Product Description
Specification Parameter
Product Video
Cable Manufacturing Capabilities

HD Mini SAS SFF-8643 to SFF-8643 Right Angle Cable

Compatibility for connecting SAS/SATA HBAs, RAID controllers, and backplanes. Rigorously tested for compatibility with major brands like Dell PowerEdge, HP ProLiant, Lenovo ThinkSystem, and LSI/Broadcom controllers, making it an ideal choice for server upgrades.

Features and Benefits

Compliance with SFF-8613/ 8643/8673 standard
Precisely engineered for 85-ohm&100-ohm controlled impedance to preserve superior signal integrity
Straight, right angle, side exit and customization cable plug are optional
Flexible wire options ranging from 30AWG to 34AWG
Supports signaling rates up 12Gbps

Applications/Market

Datacenter Servers
Data Storage
Workstation
Desktops

Mechanical Specifications

1. Mating force: 150N maximum
2. Unmating force: 50N maximum
3. Rated durability cycles: 250 cycles minimum

Electrical Parameters

Rated: 30VAC per contact
Minimum withstand voltage: 300VDC (100ms)
Insulation resistance ≥10MΩ between adjacent pins
Temperature and voltage: 80℃ 30

Product Environmental Compliance

RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes

Specification Parameter

Model	G807
Connector A	SFF-8643 Straight
Connector B	SFF-8643 Right Angle
Signal Wire Size	30AWG
Flammability	PCB UL94V-0, thermoplastic resin UL94V-0
Color	black
Impendance	100 ohms / 85 ohms
Data speed	12Gbps
Length	30CM/70CM/100CM
Environmental Compliance	RoHS,ROHS2.0,REACH
