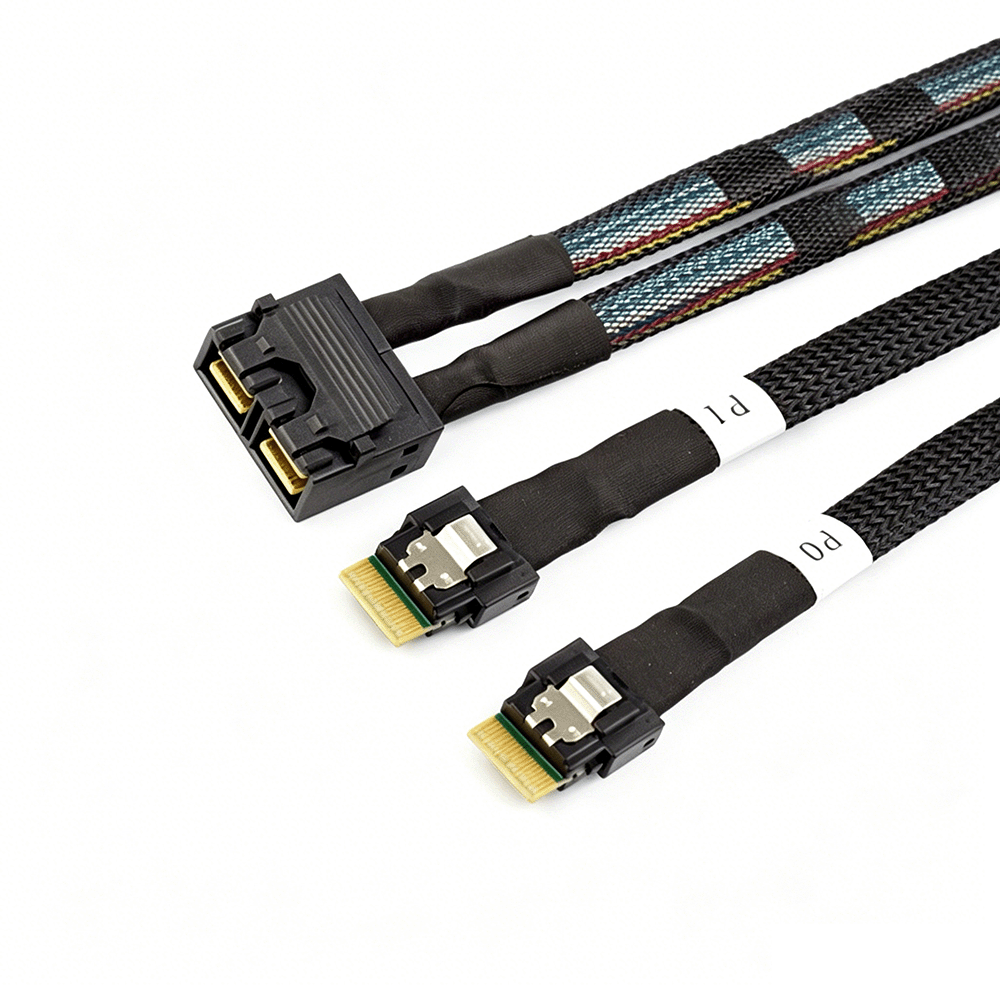

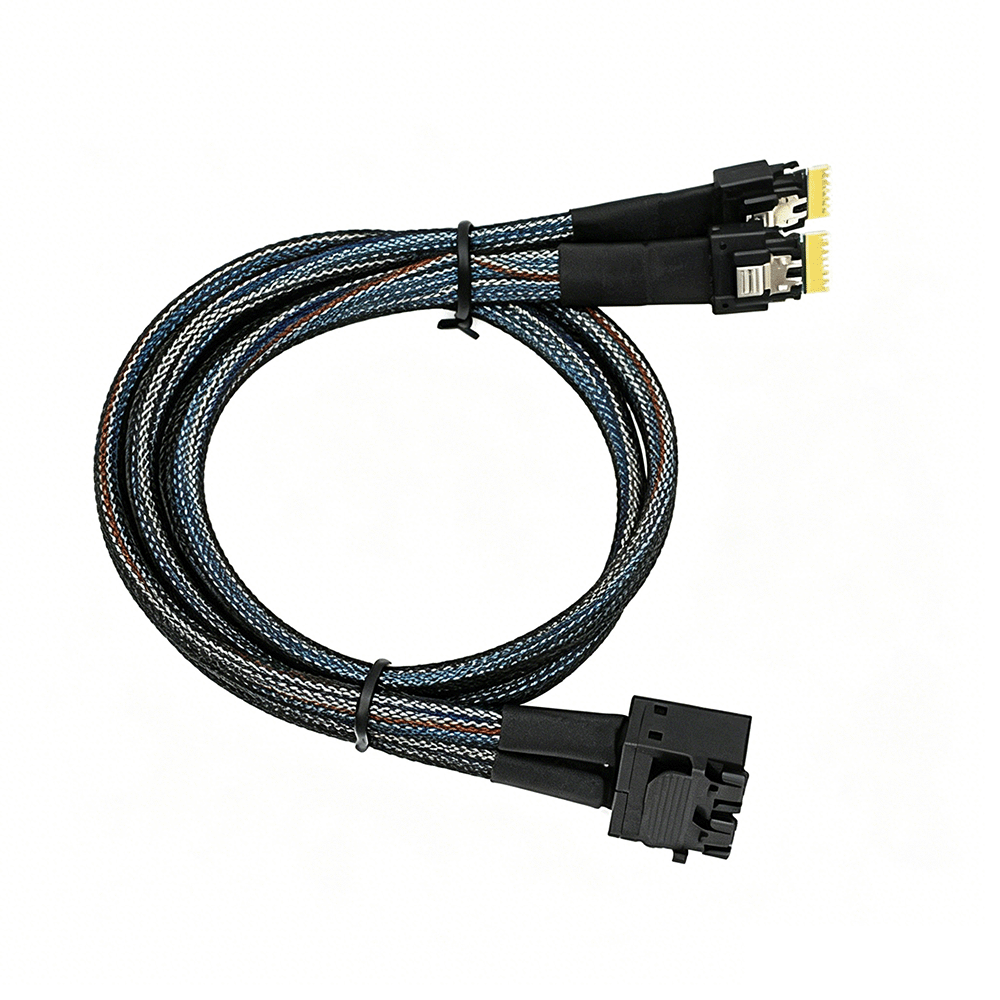

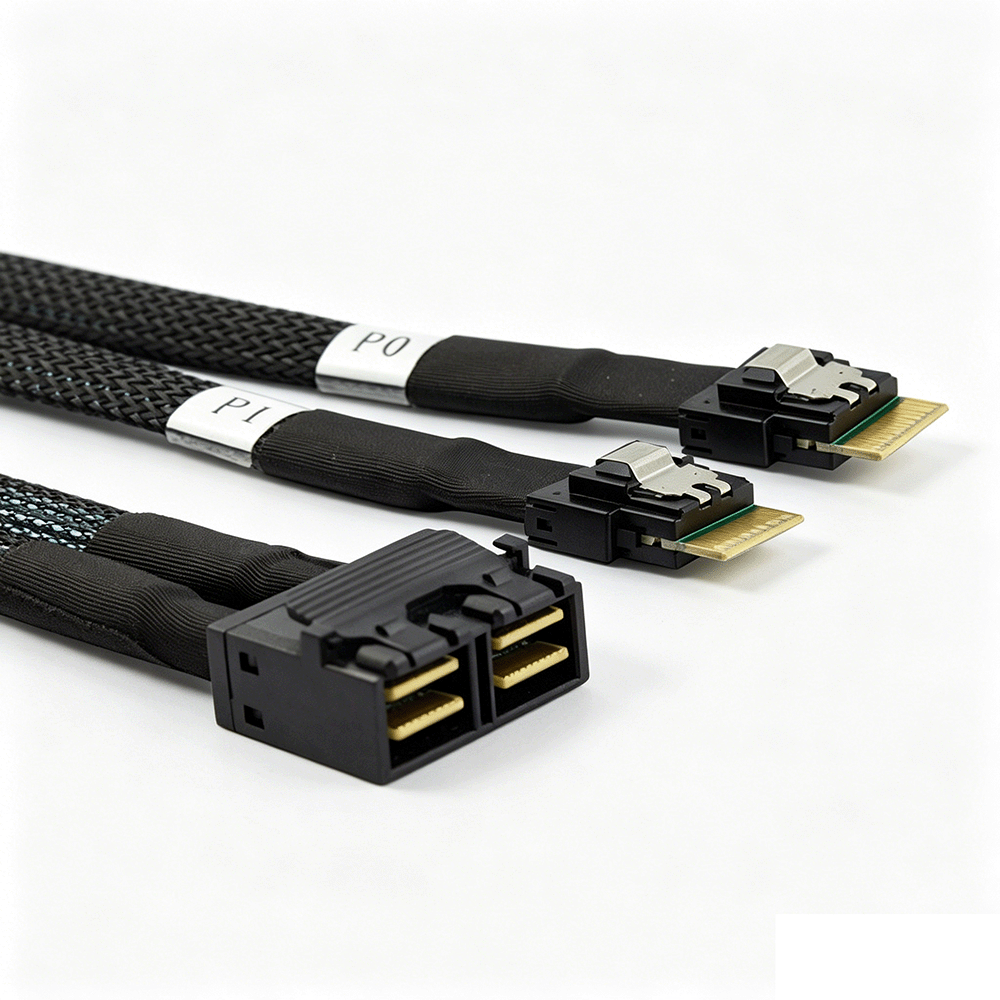

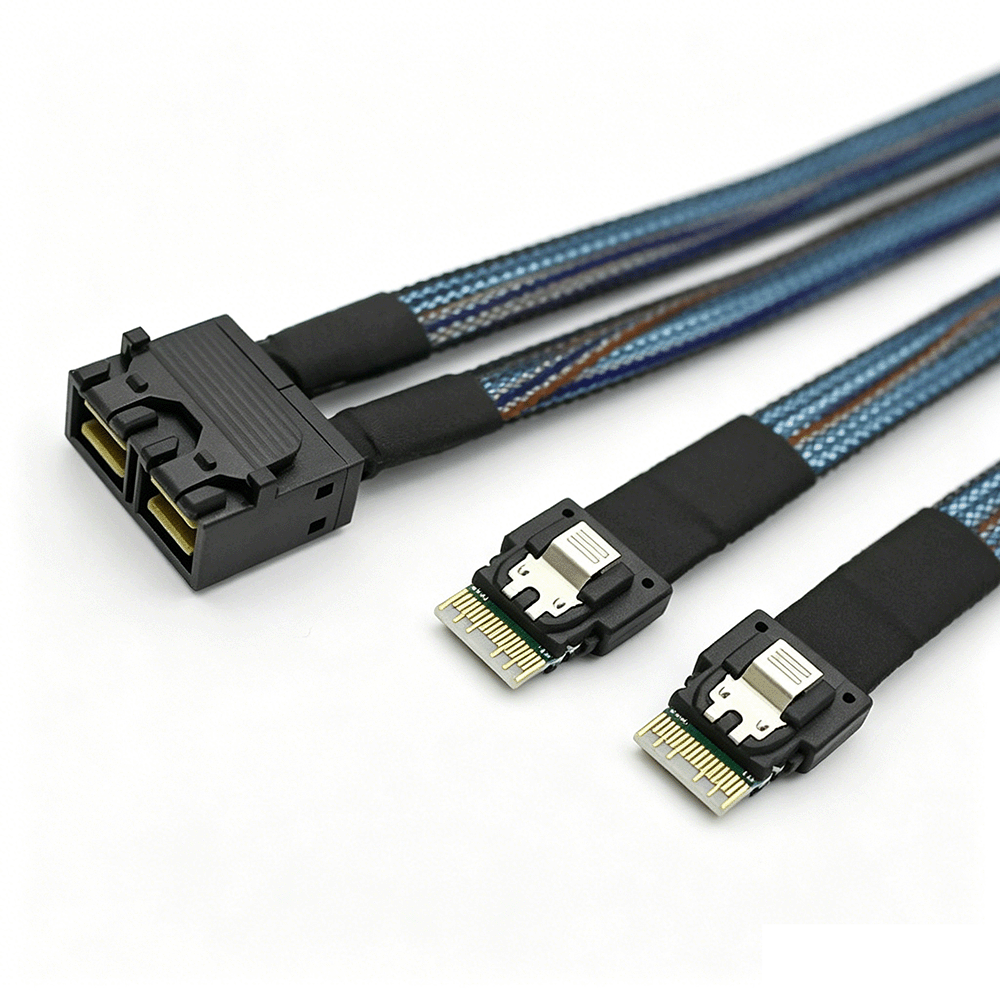

Mini SAS SFF-8643 8I to 2X SlimSAS SFF-8654 4I Cable

Mini SAS SFF-8643 8I to 2X SlimSAS SFF-8654 4I Cable

This SFF-8643/SFF-8654 compliant connector supports SAS3.0 12Gb/s with an 85Ω PCIe-compatible impedance design. Featuring advanced wafer structure and keyless design, it minimizes crosstalk and ensures outstanding signal integrity. Interchangeable with existing Mini-SAS via unified pinout and equipped with press-fit termination for convenient PCB installation. Ideal for high-density data center servers, storage devices, workstations and desktops while cutting system latency and improving equipment performance.

Inquire Download

Product Description
Specification Parameter
Product Video
Cable Manufacturing Capabilities

Mini SAS SFF-8643 8I to 2X SLIMSAS SFF-8654 4I Cable

Fully engineered to align with SFF‑8643 industry specifications and deliver SAS 3.0 12Gb/s high-speed transmission. Built around an 85-ohm impedance configuration ompatible with PCIe protocols, the precision wafer structure optimizes signal integrity for stable high-frequency data transmission.

Features and Benefits

Dual-certified to SFF‑8643 & SFF‑8654 official standards
Precisely engineered for 85-ohm&100-ohm controlled impedance to preserve superior signal integrity
Fully validated for SAS 3.0 12Gb/s electrical performance, backward compatible with SAS 2.1
Adopts reliable press‑fit termination technology for PCB assembly
Straight, right angle, side exit and customization cable plug are optional
Flexible wire options ranging from 30AWG to 34AWG
Supports signaling rates up 12Gbps

Applications

Widely deployed in data center servers, enterprise storage arrays, professional workstations and high-performance desktop internal storage interconnection.

Product Environmental Compliance

RoHS2.0: Compliant
China RoHS: Yes
REACH SVHC: Yes

Specification Parameter

Model	G810
Connector A	Mini SAS SFF-8643 8I Straight
Connector B	2* slim SAS SFF-8654 4I Straight
Signal Wire Size	30AWG-34AWG
Flammability	PCB UL94V-0, thermoplastic resin UL94V-0
Color	black
Impendance	100 ohms / 85 ohms
Data speed	12Gbps
Length	30CM/70CM/100CM
Environmental Compliance	RoHS,ROHS2.0,REACH

Product Video

JMTJM is a national high-tech enterprise integrating research and development, production, sales and service, to provide customers with one-stop solutions.
Products are widely used in 3C(computer, communication, consumer electronics) and automobile, medical, physiotherapy equipment, home theater, photography equipment, intelligent furniture and other fields.

Cable Manufacturing Capabilities

Manufacturing Capacity

JMTJM has set up two production bases in China: Dongguan Factory & Guizhou Chishui Factory. Has 25 production lines, of which 10 are automated production lines, 90% of the process through the machine to control the operation, efficient output, while improving the product yield;
R&D Capability

Super OEM abilities,to help customers realize the whole product design accordingn to their ideas, to provide product structure design, appearance design, and electronic design and other full-station services for customers;
One-stop Service

To provide customers with more competitive products and help customers get more market share by integrating the upstream and downstream supply chain. The compamy have their own wiring factory, their own connector production workshop, 50% of the product we can produce by our own.

View Of Factory

JMTJM has advanced visual automated production workshop, wiring harness workshop,connector workshop and national laboratory. Ensure product quality and production efficiency. We adhere to strict quality control and continuous technological innovation to ensure that our products achieve the highest performance and reliability.

Service Process

Quotation
Sample
Customer Confirmation
Contract Signing
Order Execution
Delivery

JMTJM Customer Case

Miniso

Monster

Verkkokauppa

Frequently Asked Questions

How do I submit an idea or design to start the process?

Submit your idea or designs, tech packs, sketches, or images to us at email Sophiayue@jmtjm.com. We have many kinds of formats and sheet.
Do you have CAD ability?

Yes, We can use CAD to make different models, materials, currents and so on. Save sampling cost and improve sampling efficiency.
What kind of packaging can you offer?

Cables can be packed in PE bag, Polybag and Blister box.
Can I visit your company and factory in China?

Sure. We are happy to receive you in Duangguan, China and show you around our workplaces.
What kind of payment methods can you accept?

Credit Card, Online Bank Payment, T/T, Paypal, Western Union, and so on.
