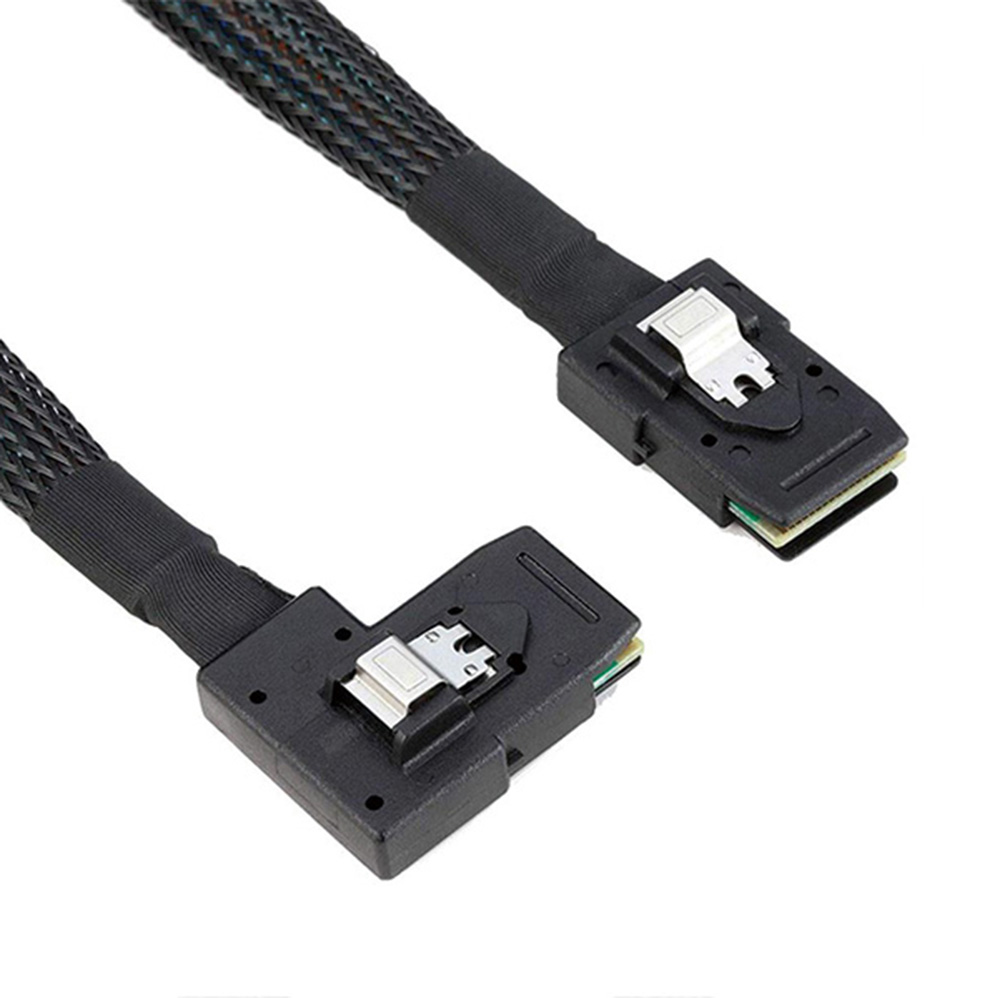

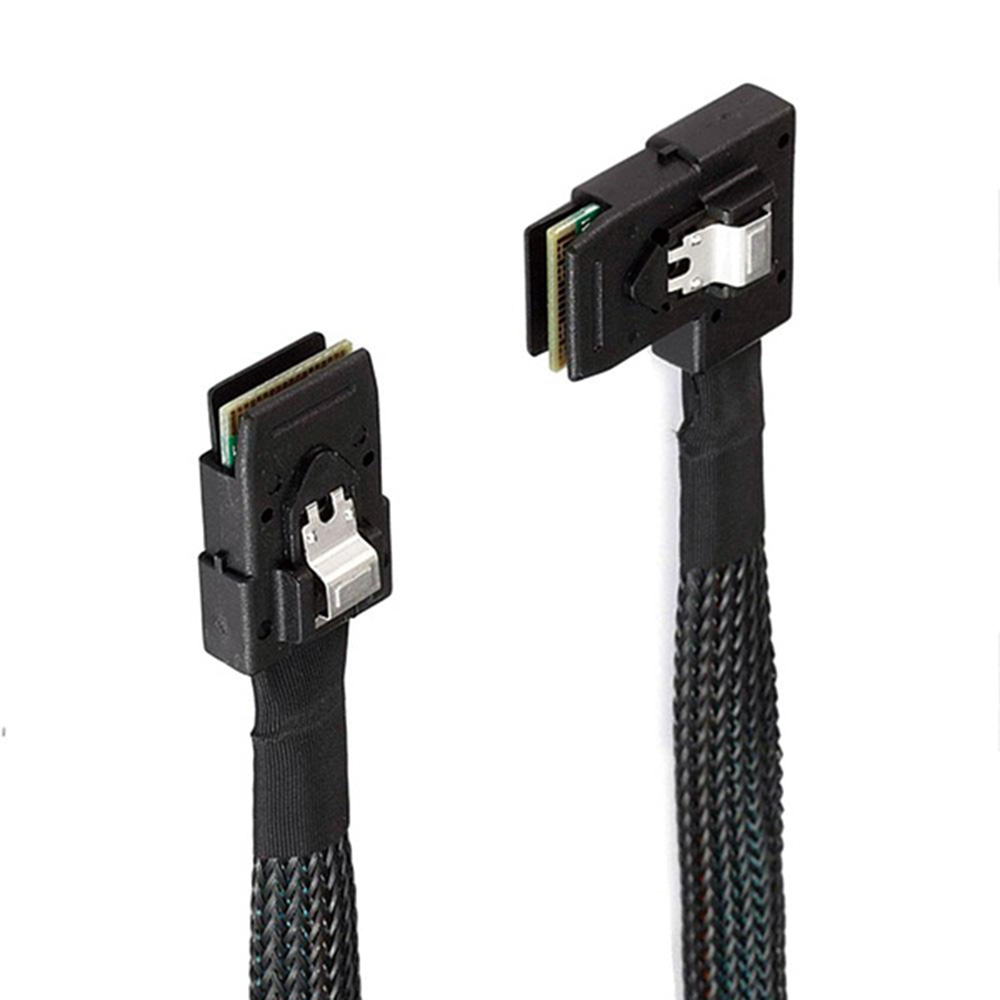

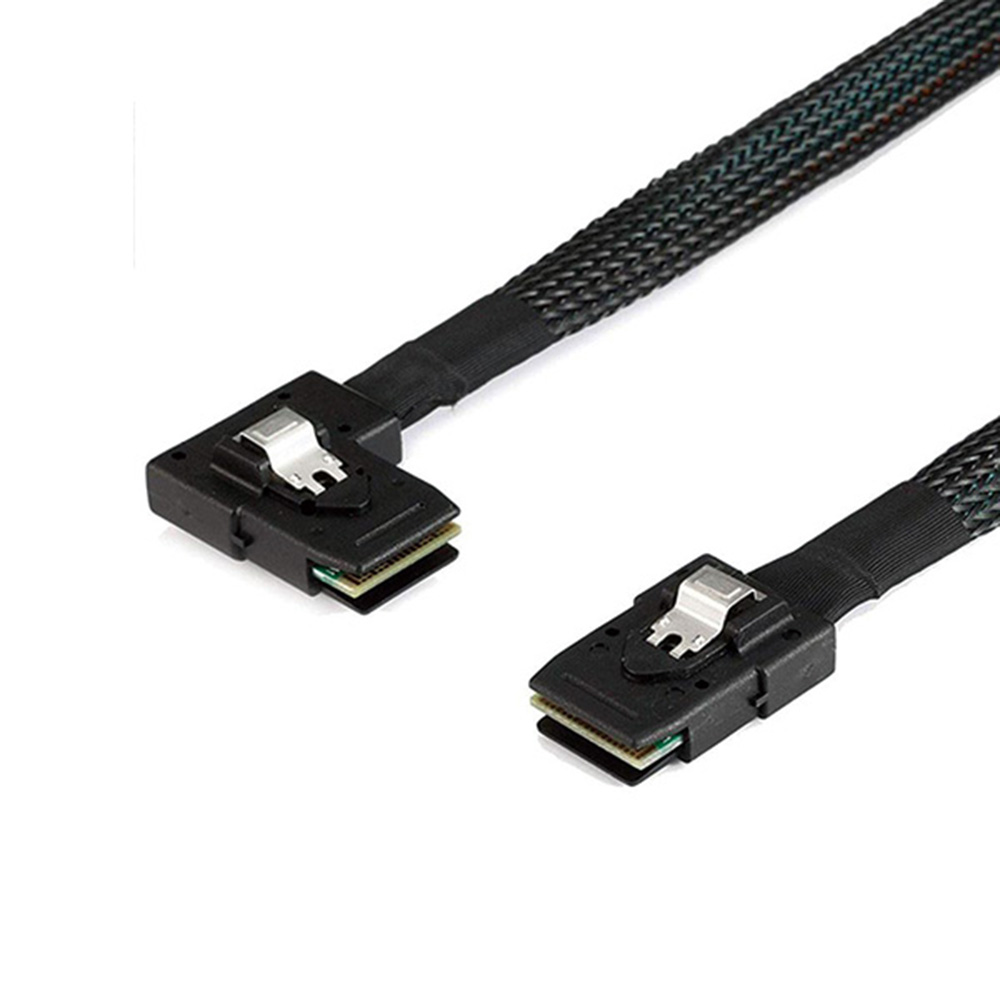

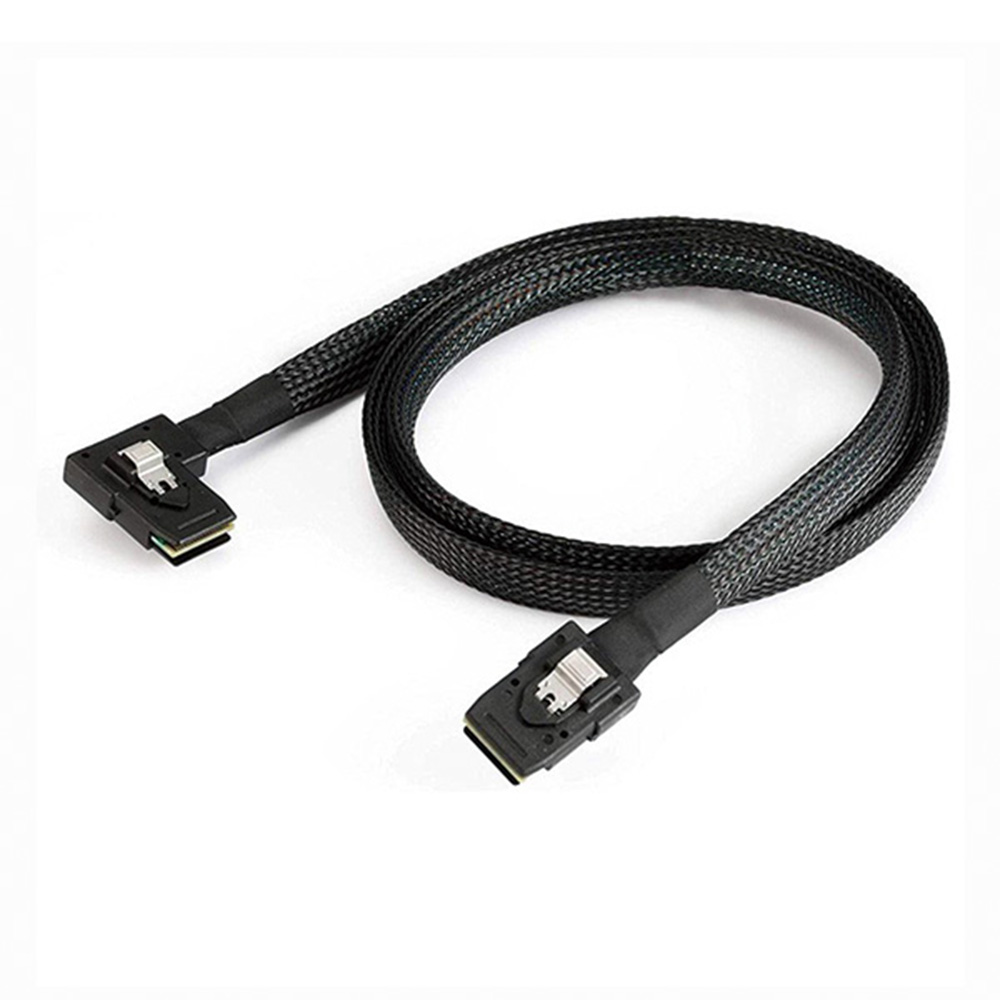

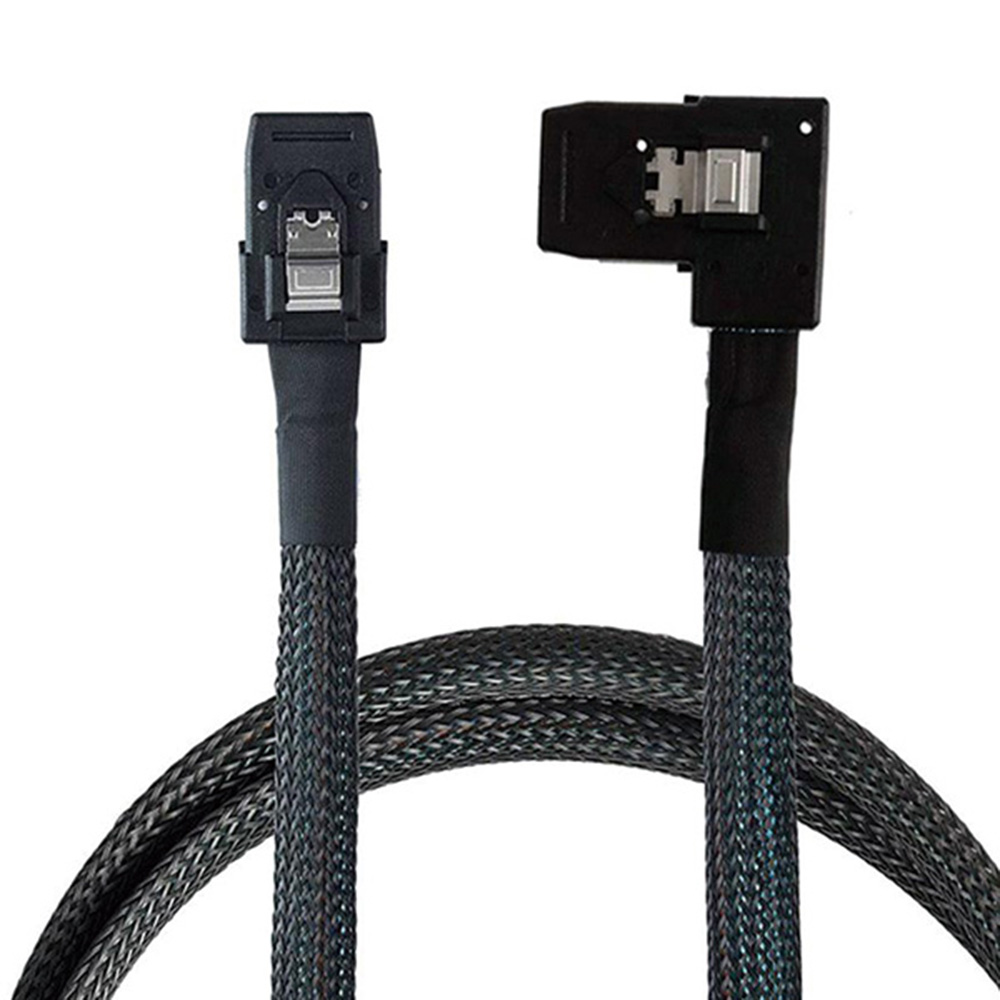

Left Side Mini SAS SFF-8087 36P Cable

Mini SAS SFF-8087 to SFF-8087 Cable

The SlimSAS SFF-8654 4i to MiniSAS SFF-8087 cable is a high-reliability, standard-compliant interconnect solution designed for enterprise data communication and storage infrastructure. Fully conforming to SFF-8086/8087 industry specifications, it is professionally optimized for SAS and SATA high-speed transmission. Featuring a compact 0.8mm fine-pitch structure and versatile connector options, it delivers stable 12Gbps SAS 3.0 and 6Gbps SATA 3.1 bandwidth. With reliable mechanical durability and excellent electrical performance, it supports multi-scenario hardware interconnection for servers, network devices and diversified storage systems.

Features and Benefits

1.  Dual-certified to SFF‑8643 & SFF‑8654 official standards

2. Precisely engineered for 85-ohm&100-ohm controlled impedance to preserve superior signal integrity

3. Fully validated for SAS 3.0 12Gb/s electrical performance, backward compatible with SAS 2.1

4. Adopts reliable press‑fit termination technology for PCB assembly


5.  Straight, right angle, side exit and customization cable plug are optional

6. Flexible wire options ranging from 30AWG to 34AWG

7. Supports signaling rates up 12Gbps


Applications

This high-performance cable serves mainstream enterprise network, server and storage scenarios, covering comprehensive commercial data interconnection needs:

1.  Networking & Server Devices: Perfect for internal high-speed wiring of enterprise switches, routers and universal servers to ensure stable and efficient data transmission.

2. Storage & RAID Systems: Applied to centralized storage equipment and RAID redundant disk arrays to support secure and high-efficiency data read-write and data protection.

3. External Storage Data Systems: Provides reliable signal connection for external expansion storage devices, realizing stable data interaction between host and off-board storage units.

4. HBA Interface Matching: Compatible with SAS, SATA and PCIe HBA card interfaces, enabling flexible host expansion and multi-protocol signal interconnection.

5.  Direct Attached Storage (DAS): Ideal for DAS direct-attached storage scenarios, delivering low-latency, high-throughput point-to-point data transmission.

Electrical Performance

This high-performance cable serves mainstream enterprise network, server and storage scenarios, covering comprehensive commercial data interconnection needs:

• Per Contact Voltage: 30VAC

• Per Contact Current: 0.5A

• Dielectric Withstanding Voltage: Minimum 300VDC for 100ms with no breakdown

• Insulation Resistance: Minimum 10MΩ between adjacent pins, preventing current leakage and signal crosstalk

Signal Integrity

Optimized high-frequency signal design eliminates transmission loss and interference, supporting full-speed standard protocol transmission:

• SAS 3.0 Transmission: Supports full 12Gbps high-speed data bandwidth for enterprise-level SAS storage arrays

• SATA 3.1 Transmission: Compatible with 6Gbps standard speed, adapting to universal SATA storage device data interaction

Product Environmental Compliance

• RoHS2.0: Compliant

• China RoHS: Yes

• REACH SVHC: Yes
