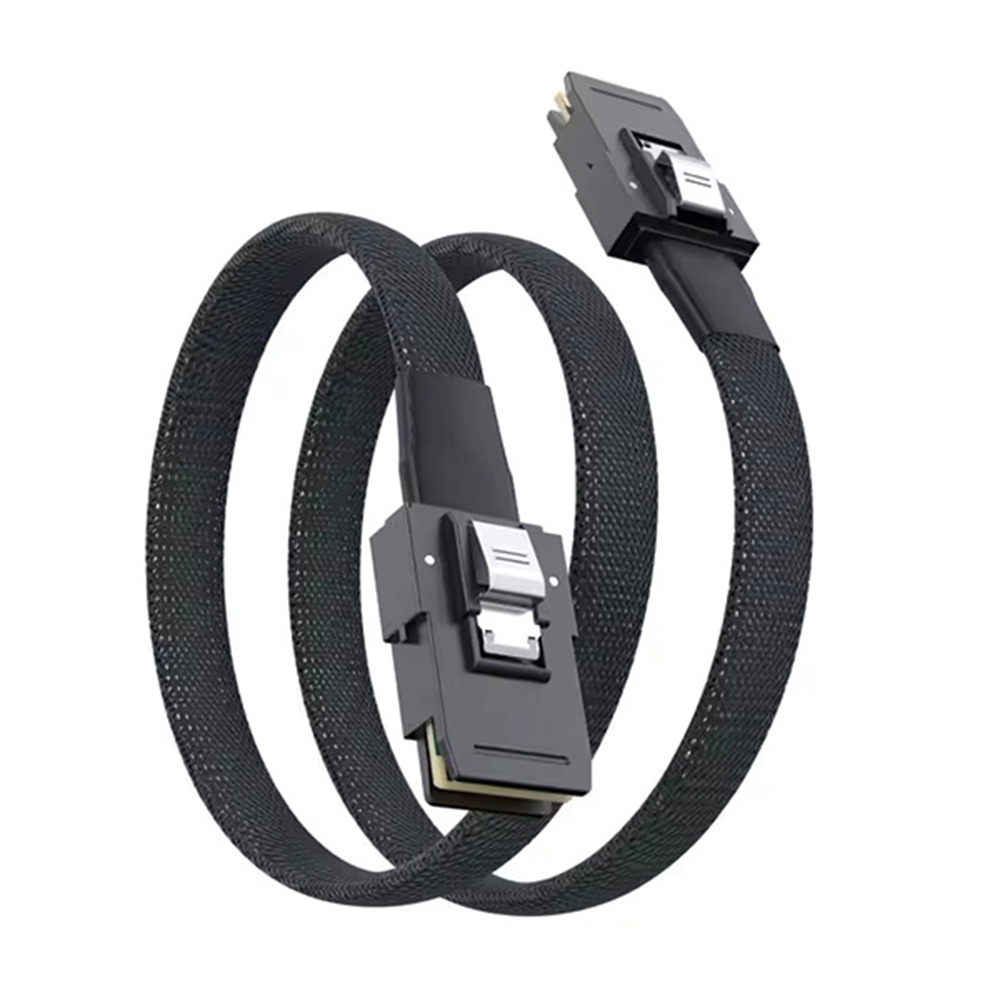

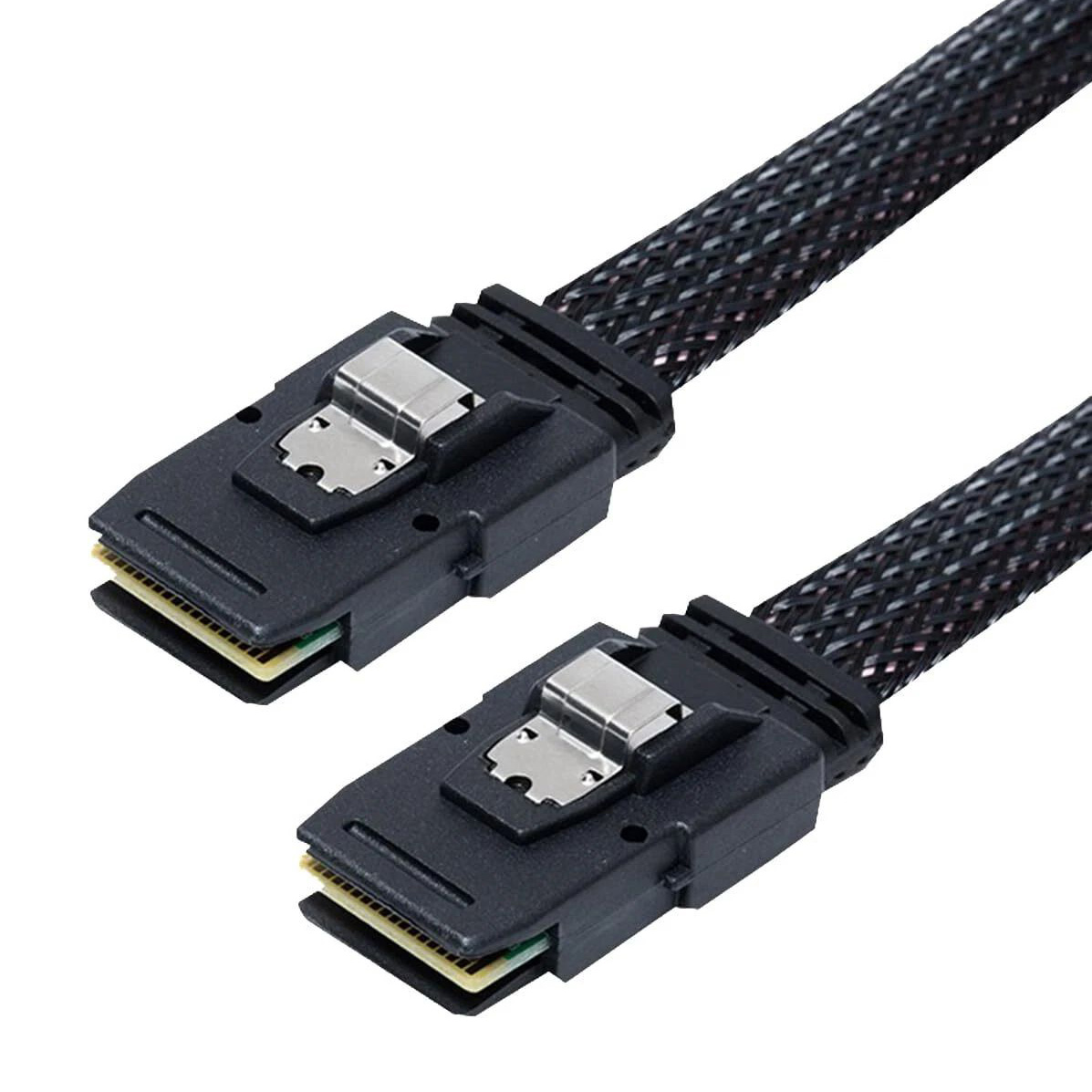

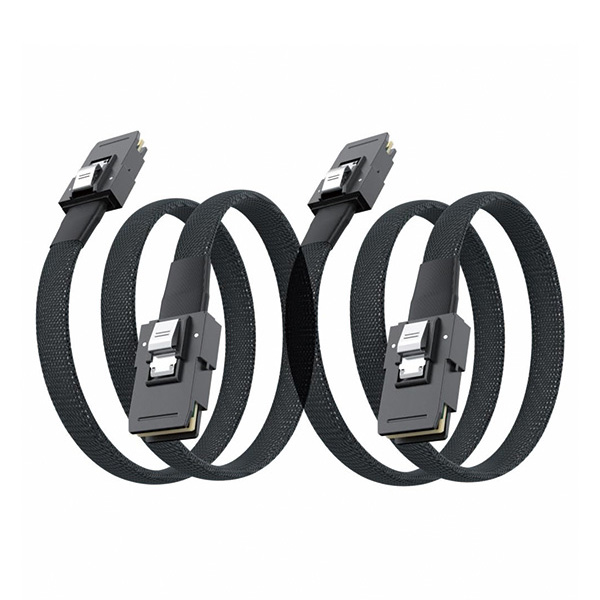

Mini SAS SFF-8087 STR to SFF-8087 STR Cable

Mini SAS SFF-8087 STR to SFF-8087 STR Cable

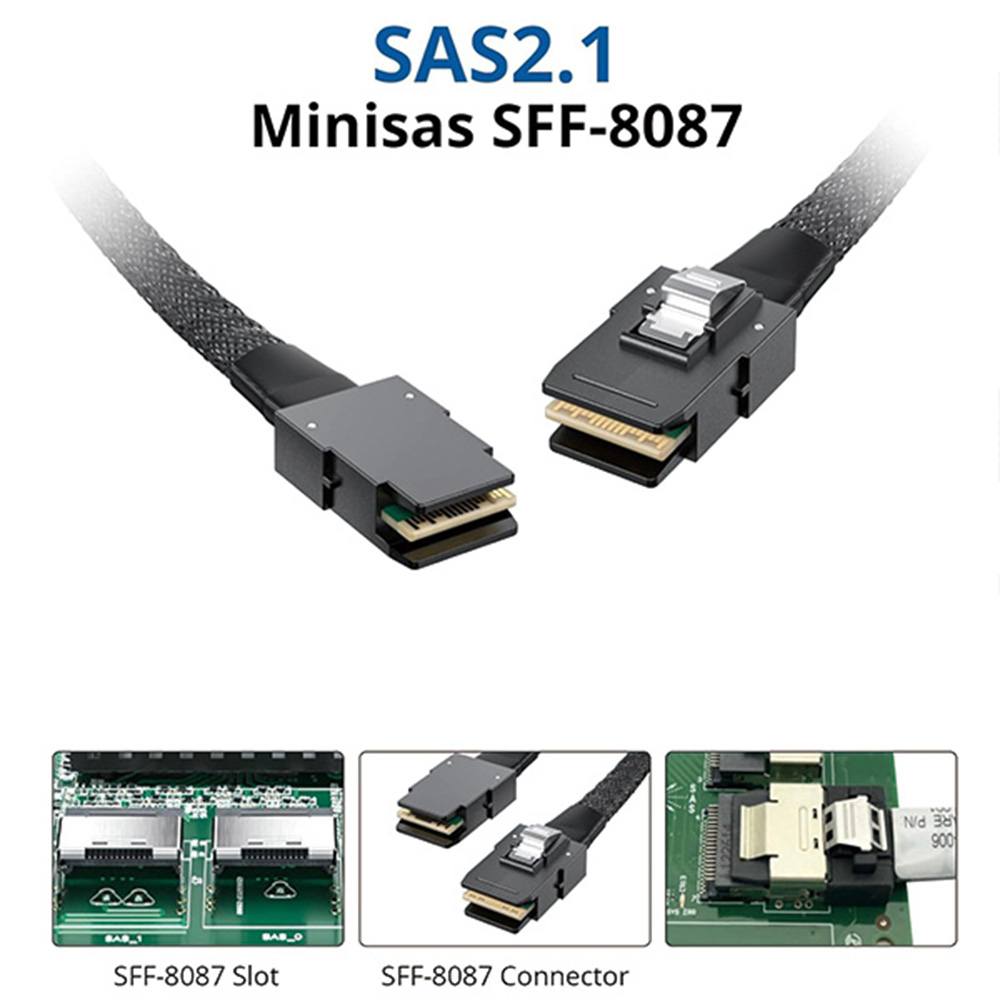

This Mini SAS SFF-8087 straight-to-straight cable is a standard-compliant internal high-speed interconnect for enterprise storage and networking. Fully certified to SFF‑8086/SFF‑8087 specs, it adopts compact 0.8mm fine-pitch construction with multi-option connectors tailored exclusively for SAS & SATA deployment, stably supporting 12Gbps SAS3.0 and 6Gbps SATA3.1 transmission for diversified storage infrastructures.

Features and Benefits

1. Fully conforms to SFF‑8086 / SFF‑8087 industrial specifications for universal hardware compatibility.

2. Compact 0.8mm fine pitch miniaturized design saves precious internal chassis space for high-density layout.

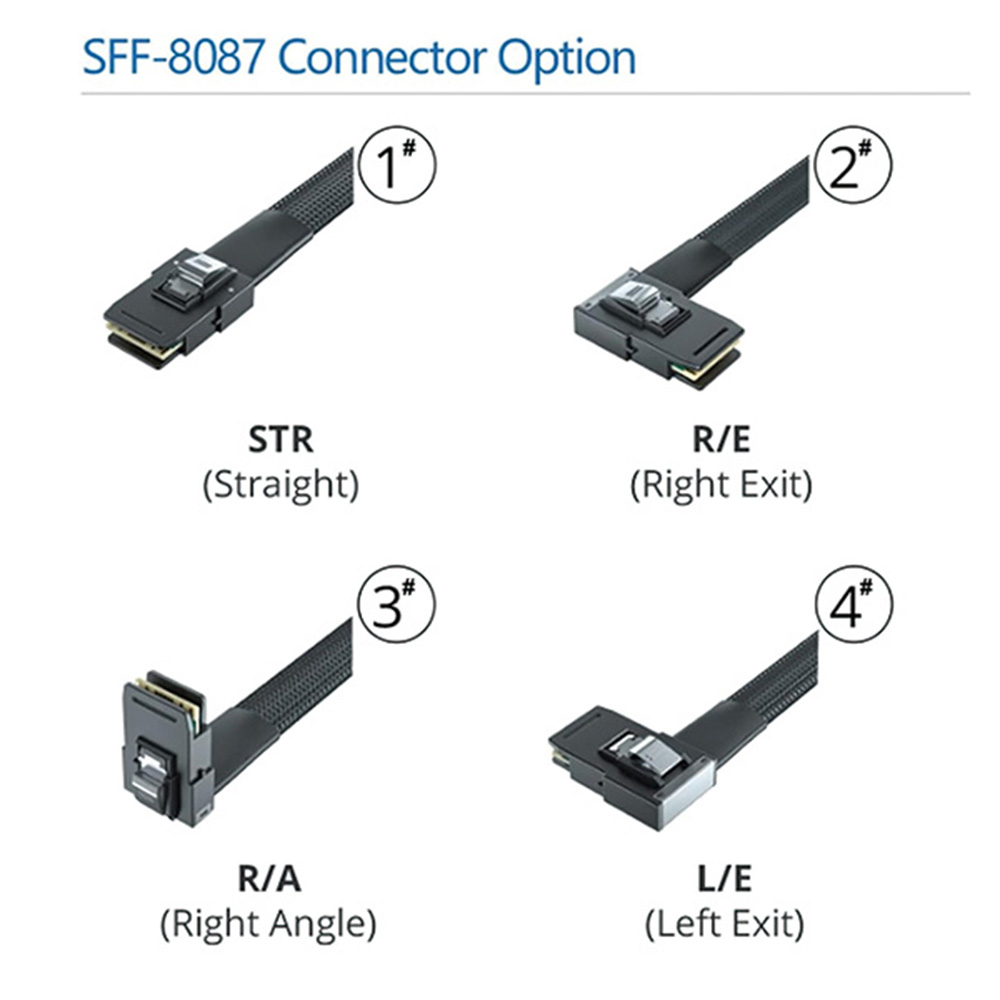

3. Available in 36-position and 68-position terminals; customizable straight, right-angle and side-exit termination styles.

4. Purpose-built for mainstream SATA and SAS storage transmission scenarios.

Applications/Market

1. Network devices: Enterprise switches & routers

2. Computing hardware: All types of rack and standalone servers

3. Storage equipment: RAID arrays, external storage enclosures and DAS direct-attached storage

4. Expansion connection: SAS/SATA/PCIe HBA & RAID card interface wiring

Mechanical Specifications

1. Max Mating Force: 55.5N

2. Max Unmating Force: 49N

3. Minimum durability: 250 mating/unmating cycles for long-term repeated assembly

Electrical Parameters

1. Rated: 30VAC per  contact

2.  Minimum withstand voltage: 300VDC (100ms)

3.  Insulation resistance ≥10MΩ between adjacent pins

Product Environmental Compliance

• RoHS2.0: Compliant

• China RoHS: Yes

• REACH SVHC: Yes
